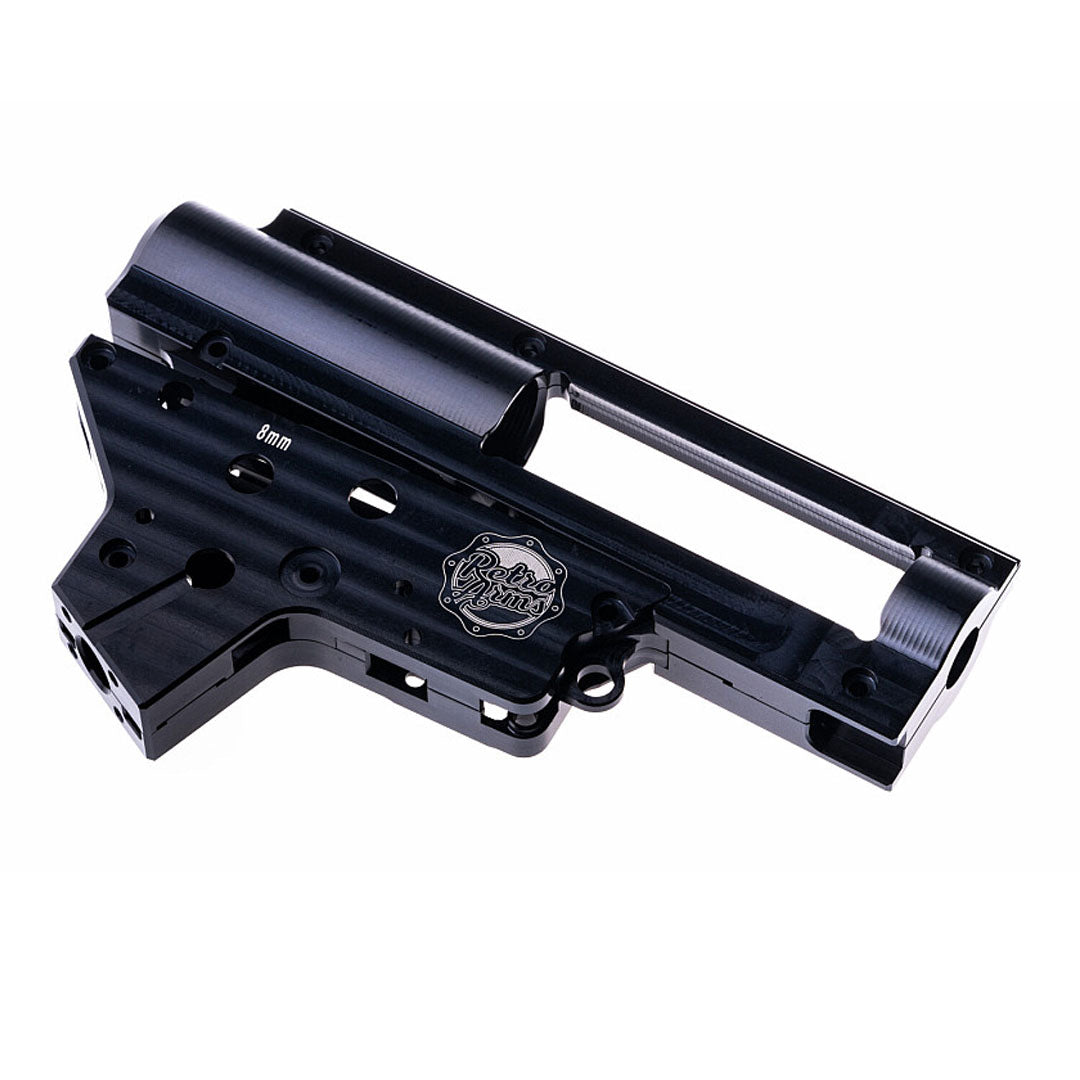

Retro Arms Airsoft CNC Split Gearbox Shell 8mm V2 QSC

Retro Arms CNC V2 Split Gearbox 8mm 7075 Aluminium

Expertly CNC crafted gearbox shell from Retro Arms.

CNC milled from a solid block of 7075 Aluminium there has been absolutely no compromise.

Very light weight but extremely strong this is the perfect upgrade for your AEG airsoft RIF.

Recommended nozzle length is 21,4mm.

Be aware that nozzle length can be influenced by many factors, for example angle of the tapped plate or different length of front part of the Hop Up bucking.

In these scenarios, you will need a different nozzle length.

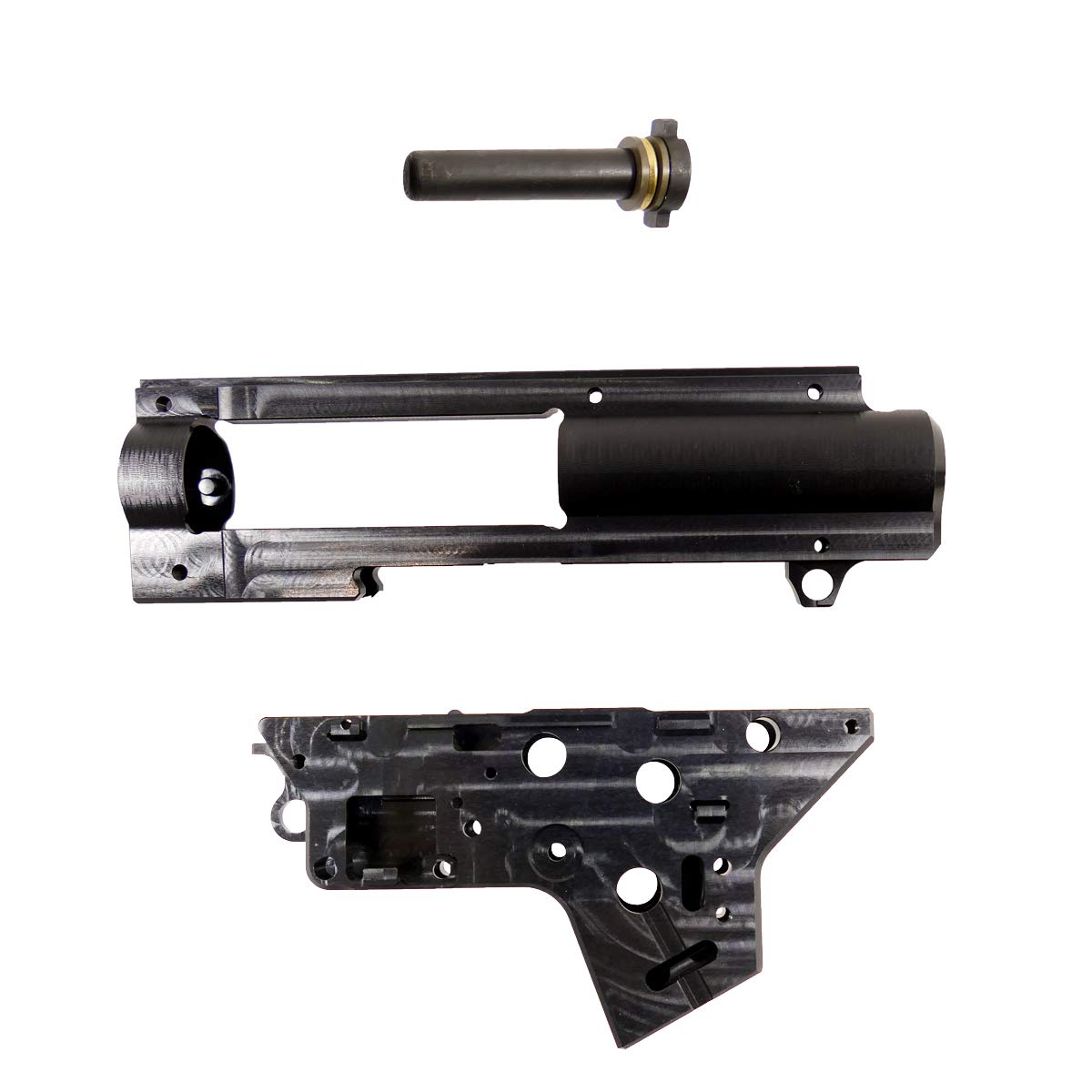

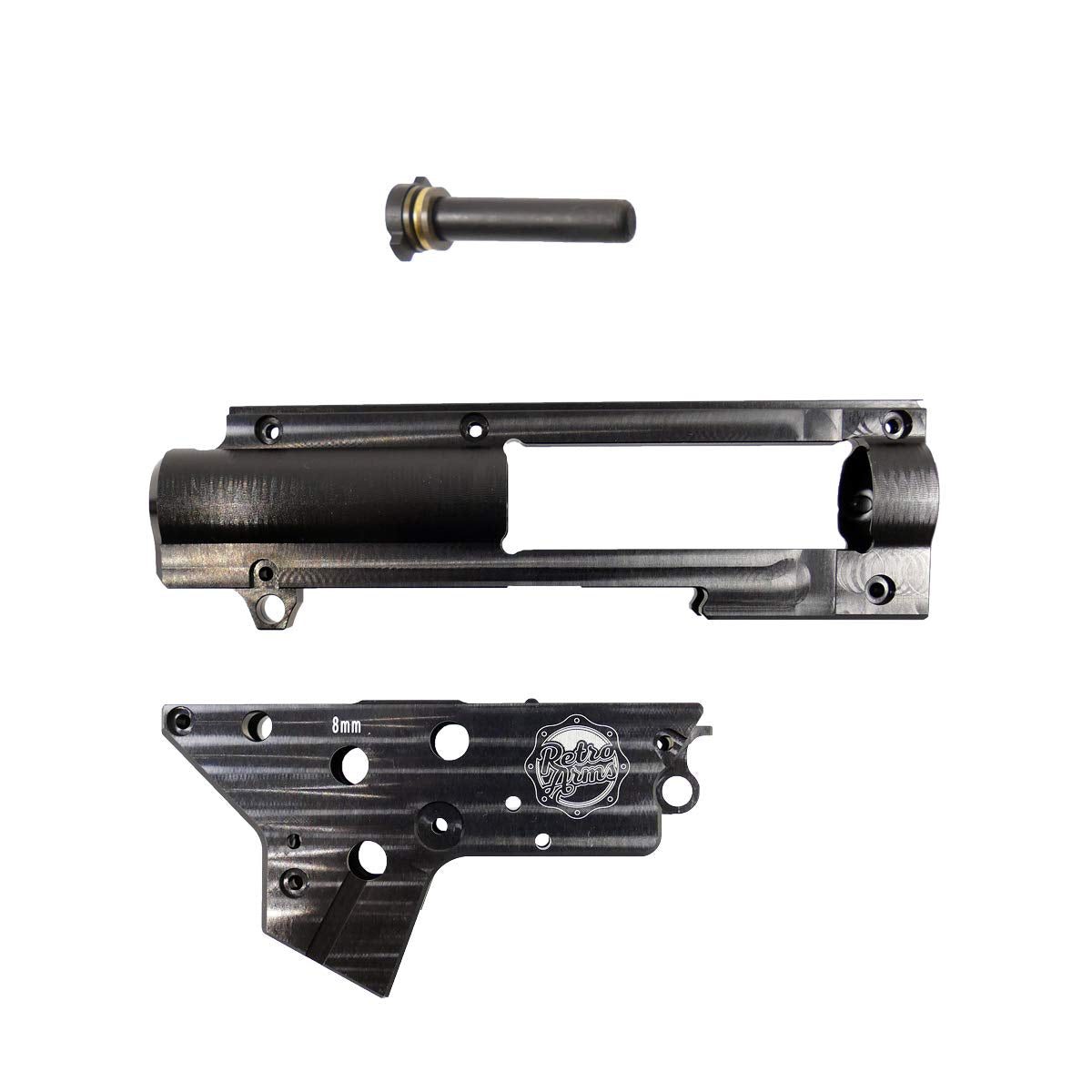

Package includes: CNC Split Gearbox V2 (8mm) – QSC in chosen colour, set of screws and QSC spring guide.

We made some useful improvements into our CNC split gearboxes V2:

Spring holders have grooves, so the springs for tapped plate and trigger switch will not jump off.

Added groove for safety lever, so it will hold during installation.

Added groove for trigger spring, for better fitting.

AOE control hole.

Sockets for bushings/bearings have smaller diameter about -0,02mm (7,98mm), for non-overturning the bushings during installation.

The socket edges are cut down for better installation.

We enhanced grooves for wiring for 1mm, you can now use wiring with 2,5mm diameter.

Added protecting edge for wiring against the motor. All threads are now shaped instead of cutting for better strength.

Both gearbox parts are centred by milled grooves and edges.

Added hole for releasing anti-reverse latch.

For better durability, we added more material around cylinder head part of the gearbox, this was the most critical part, and we added 100% more material where huge radius is.

Added groove for anti-reversal latch spring, so it will not jump off.
