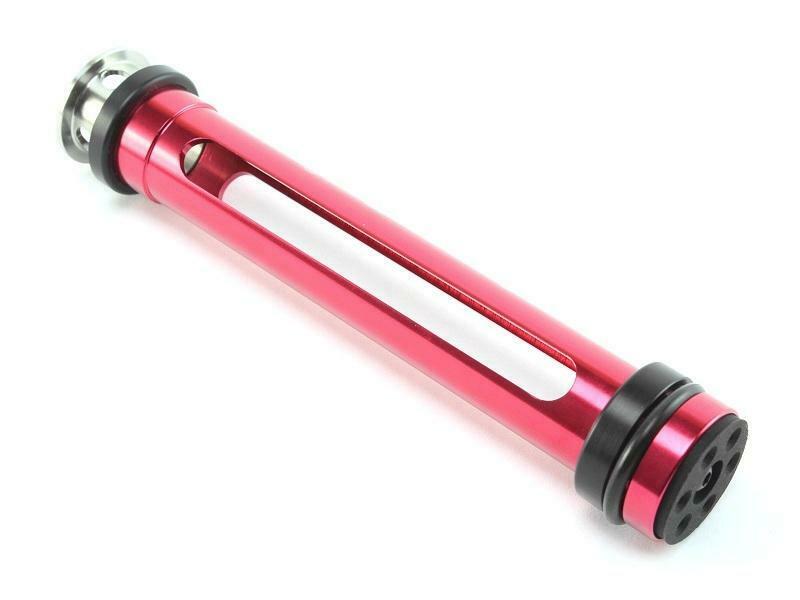

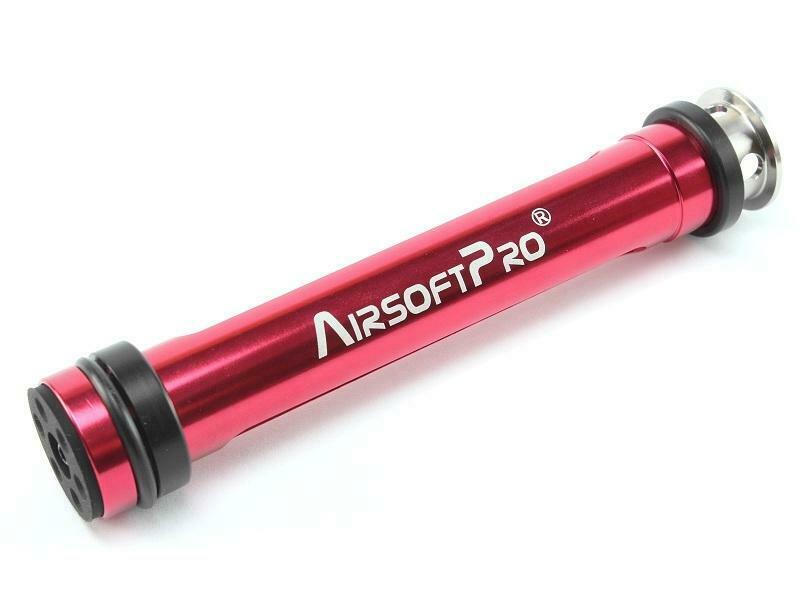

Airsoftpro Lightweight Hybrid Piston For Cyma M24 Cm.702 Sniper Rifle

Airsoftpro Lightweight Hybrid Piston For Cyma M24 Cm.702 Sniper Rifle

Reinforced piston for your airsoft sniper rifle. For maximum performance and durability. The hybrid piston is made of three different materials:

Light aluminium body

Two POM rings for better sliding in the cylinder

Catch back end part made of stainless steel.

Compared to the previous version, the piston was completely redesigned. Rubber pad now exceeds larger area, stainless steel part is shorter, piston is more lightweight.

This reduces the weight by a quarter over the previous generation.

And lower weight means higher performance. The groove below the sealing ring is shallower with a modified shape, reducing the risk of head deformation due to impact.

Improvements have also been made to the sliding POM piston rings for longer life of the front of the piston.

They were slightly enlarged so that the metal parts did not touch cylinder and had a smoother surface.

The piston is made by CNC machining from light, but durable aluminium alloy 6061-T6 (Dural) with a high-quality anodized finish.

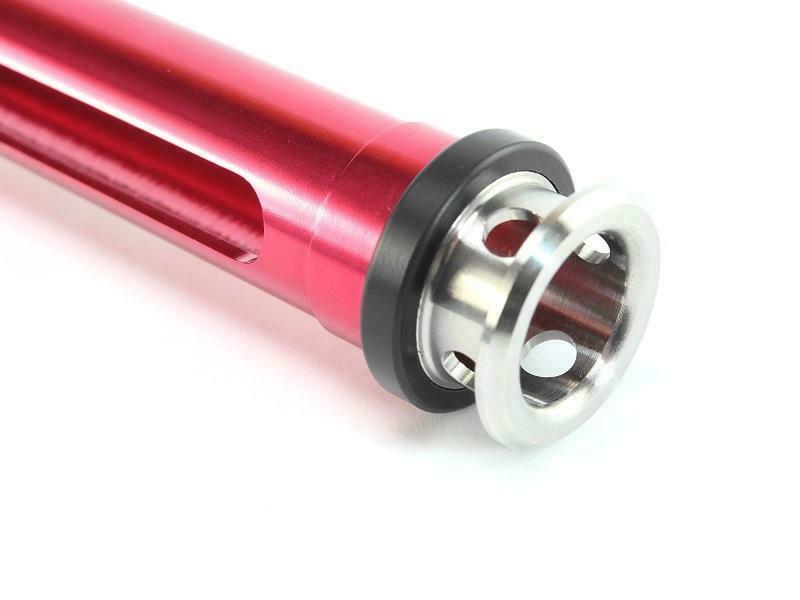

The piston catch is made of stainless steel.

The piston has two sliding polyacetal (POM) rings.

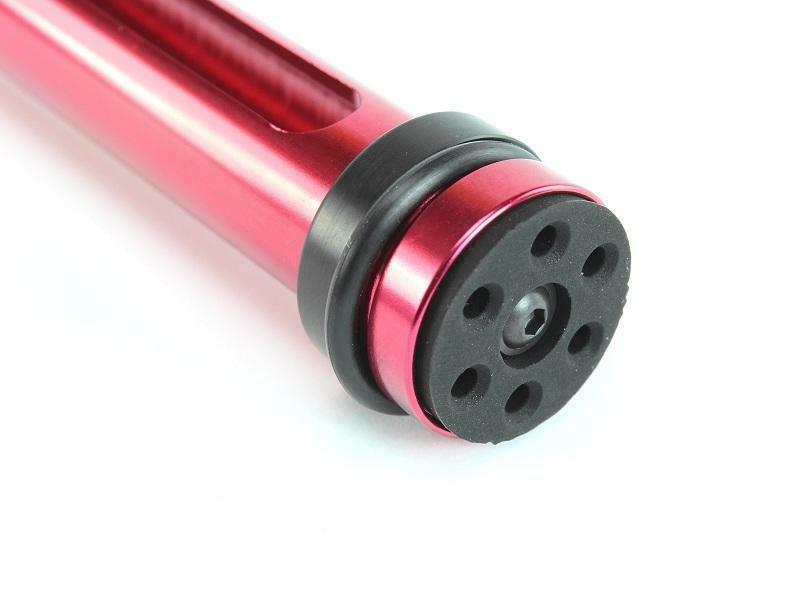

The piston head has and back-pressure system with O-ring (O-ring expands and seals better when shooting).

The enlarged inner piston diameter allows you (and we recommend) to insert a stronger 9mm spring upgrade.

Dimensions: length - 118,7mm, outer diameter - 21,8mm, inner diameter - 13,5mm

Weight: 30g

APPLICATION:

CYMA CM.702, which is M24 replica. No modification needed.
